Product Description

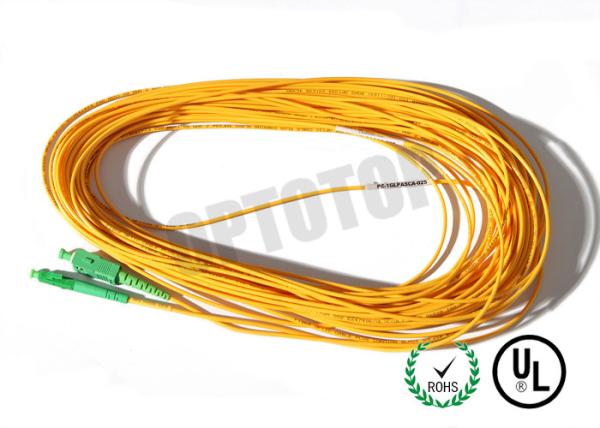

Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with TIA/EIA and IEC standard
Application
CATV
Active dvice termination
Telecommunication networks
Metro
Local Area Networks(LANs)
Data Processing networks
Test Equipment
Premise installations.
Wide Area Networks(WANs)
Feature
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
LC,SC,FC,ST,MPO, fiber optic patch cord
OEM patch cords
Telcordia GR-326-4 core compliant
CE, Rohs, UL, REACH.
High quality and fast delivery
Small trail order is avalable
Specifications
| Parameter | Unit | Index |
| End-face type | PC | UPC | APC |
| IL | dB | SM: ≤0.3; MM≤0.1 |
| Repeatability | dB | ≤0.1 |
| Interchangeability | dB | ≤0.2 |
| RL | SM | dB | ≥50 | ≥50 | ≥50 |
| MM | dB | ≥36 (without APC connector) |
| Mating times | ＞1000 |
| Operating temperature | ℃ | -40~ +80 |
Ordering Information
| OFC | -X | -XX | -XX | -XX | -XX | -XX |
| | S: simplex
D:duplex | LA:LC/APC
LC:LC/UPC
LP:LC/PC | LA:LC/APC
LC:LC/UPC
LP:LC/PC | 09:0.9mm
20:2.0mm
30:3.0mm | 0:G652D
1:G657A
2:50/125
3:62.5/125
4:others | 0.5:0.5m
1.0:1.0m
10:10.0m |
| | Fiber mode | Connector Type | Connector Type | Cable Diameter | Fiber Type | Fiber Length |
EX: OFC-D-SU-SU-30-1-1.0
| Parameter | Units | Split Ratio EVEN 1x3 | Split Ratio EVEN 1x4 |
| Max.Insertion Loss | dB | 6.3 | 7.9 |
| Uniformity | dB | 1.2 | 1.5 |
| PDL | dB | 0.2max | 0.3max |
| Wavelength | nm | 1310 +/- 40 and 1550 +/- 40 | 1310 +/- 40 and 1550 +/- 40 |
| Directivity | dB | > 55 | > 55 |
| Max.I.L Change | dB | <0.3 dB over operating temperature range | <0.3 dB over operating temperature range |
| Return Loss | dB | <-55 | <-55 |
| Fiber Type | | Single Mode, (9/125),900 um loose tube fiber | Single Mode, (9/125),900 um loose tube fiber |
| Fiber Length | m | 1 ±10cm | 1 ±10cm |
| Operating Temp. Range | Celsius | -40 to +85 | -40 to +85 |
| Package Dimensions | (DXL) mm | 4x65 | 4x65 |
SPECIFICATION CONTROL DRAWING
4027134 CYL-CPLR-1X3 EVEN SC/APC
4027135 CYL-CPLR-1X4 EVEN SC/APC
1. GENERAL
This is a cylindrical coupler design, even split, 900um loose tube fiber, connectorized.
2. ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Min Max Unit
Storage Temperature Tstg -40 85 C
Operating Case Temperature TC -40 85 C
3. OPTICAL CHARACTERISTICS (Over Operating Temperature Range unless otherwise specified)
Product Tags:
|
|
FUSED COUPLER, 1 X 3 EVEN ( MONOLITHIC ) , DUAL WNDOWS 1310 / 1550 + / - 40 NM , SC / APC CONNECTORS Images
|
