FOPC MM OM4 Fiber Optic Patch Cord 5m 2mm For LANs / WANs , SC UPC Connector

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

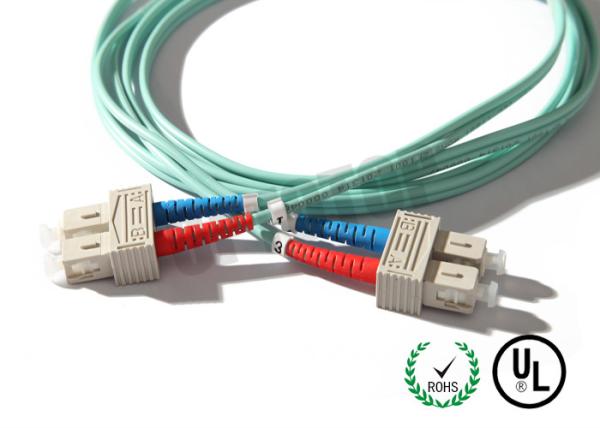

FOPC MM OM4 Fiber Optic Patch Cord 5m 2mm For LANs / WANs , SC UPC Connector

  • 1
  • 2

Brand Name : Geehe or OEM

Model Number : SC/UPC-SC/UPC

Certification : ROHS, REACH, UL, ISO

Place of Origin : Wuhan, China

MOQ : 100 PCS

Price : Price Negotiable

Payment Terms : Bank Transfer

Supply Ability : 10,000 pcs per month

Delivery Time : 3-5 days

Packaging Details : plastic zip bag and carton

Material : Corning cable

Cable Color : Aqua

Connector : SC/UPC

Length : Customized

Mode : Multi Mode

Diameter : 2.0mm

Fiber Mode : Duplex

Contact Now

FOPC MM OM4, 2 Fiber zip 2mm OFNR, SC/UPC, 5m Patch Cords

1. Description

Fiber optic patch cord ,Precise connector, Customized length, Excellent mechanical capability, insertion loss<0.2dB, Good durability and exchangeability, Compliant with TIA/EIA and IEC standard

3. Features

Ultra low insertion loss and back reflection

IEC 60B7-14; F04(JIS C5973); FOCIS-3; TIA/EIA-604-3A

Telcordia GR-326-4 core compliant

UL94 V-0 rated plastic housing or metal housings available

Standard and telcordia style high spec boots in various colors

RoHS compliant

2. Application

CATV

Active device termination

Telecommunication networks

Metro

Local Area Networks(LANs)

Data Processing networks

Test Equipment

Premise installations.

Wide Area Networks(WANs)

Specifications

Parameter

Unit

Index

End-face type

PC

UPC

APC

IL

dB

SM: ≤0.3; MM≤0.1

Repeatability

dB

≤0.1

Interchangeability

dB

≤0.2

RL

SM

dB

≥50

≥50

≥50

MM

dB

≥36 (without APC connector)

Mating times

＞1000

Operating temperature

℃

-40~ +80

Ordering Information:

EX: OFC-S-FA-FC-09-1-0.5

OFC

-X

-XX

-XX

-XX

-XX

-XX

S: simplex

D:duplex

FA:FC/APC

FC:FC/UPC

FP:FC/PC

FA:FC/APC

FC:FC/UPC

FP:FC/PC

09:0.9mm

20:2.0mm

30:3.0mm

0:G652D

1:G657A

2:50/125

3:62.5/125

4:others

0.5:0.5m

1.0:1.5m

10:10.0m

Fiber mode

Connector Type

Connector Type

Cable Diameter

Fiber Type

Fiber Length
